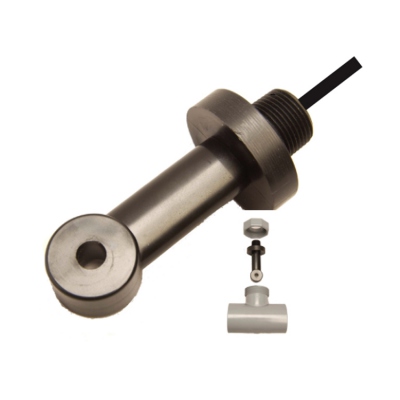

TCS3000 and 3020 Series Toroidal Conductivity Sensors
/
Item No.: TCS3000, TCS3020, FC95C
/
TCS3000/3020 Series Toroidal Conductivity Sensors Features
• Resists coating, corrosion and fouling
• Durable Noryl construction
• Easy installation
• Custom tee for in-line mounting
• Connects to Sensorex TCSMA, TCSTX, Rosemount or Foxboro Instrumentation
/
TCS3000/3020 Series Toroidal Conductivity Sensors Description
The Sensorex TCS series toroidal inductive conductivity sensors features a wide measurement range and dependable toroidal technology over the range 0-2000. Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the TCS series is designed for a trouble free and long service life.
Noryl is the standard material of construction and has a wide solvent tolerance and temperature stability to 105 degrees C***. optional PeeK models will be available in the future. all models can be submersed by utilizing the 3/4” MnPT threads on the sensor or installed in 2” nPT tees for in-line deployment. aTC element is user specified and built into the TCS sensor. all TCS sensor models are suppplied with 20ft long 9-conductor cable. Custom lengths are available. Please contact Sensorex for pricing.
Choose the TCS3020 for use with a Sensorex TCSMa or TCSTX toroidal transmitter. TCS3000 sensors can be connected to many toroidal controllers and transmitter manufactured by rosemount, Foxboro or others.
/
TCS3000/3020 Series Toroidal Conductivity Sensors Specifications
• Measuring Range: TCS3020 and TCS3000 - 0-2,000,000 uS/cm
• Body Material: Noryl
• Max Temperature: 105 Degrees C
• Max Pressure: 150 psig
• Cable Length: 20 feet, 6 conductor plus shields
