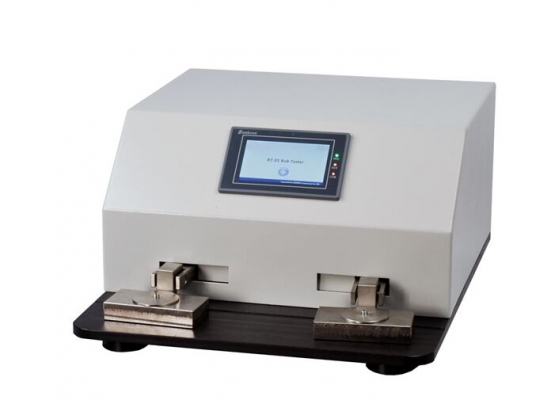

Printing Quality Rub Tester is designed to evaluate the scuffing or rubbing resistance of printed or coated surface of paper, paperboard, film, laminates, substrates, etc.
Printing Quality Rub Tester conforms to the standard: TAPPI T830, ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials by the Sutherland Rub Tester.
Features
- PLC control and touching screen operation
- 4 test modes of dry rub, wet rub, wet bleed & wet transfer, and wet smear and 4 different test speeds to meet different test requirements
- Dual stations arc movement structure
- Buzzer reminding after test is finished
Technical Data
Rub Pressure 8.9 N(2lb); 17.8N(4lb)
Rub Speed 21, 42, 85, 106 cpm(other speed can be set)
Number of Specimens 1 ~ 2
Power Supply AC 220V 50Hz
Instrument Dimension 390 mm (L) x 480 mm (W) x 220 mm (H)
