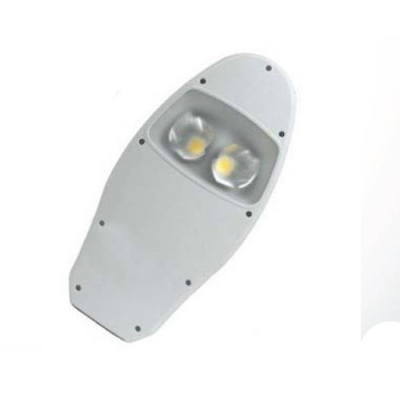

1.Led street light
2.Japan import thermal silica gel
3.Die-casting aluminum and Temepered glass
4.3 years warranty
5.CE RoHS TUV approval
Specification
Model : SW-ST690-C120W
Input Voltage: AC85-265V
Power: 120w
Luminous Flux: 14400-15600lm
IP Degree: IP65
Beam Angle: 120 degree
Power Factor: >0.95
CRI: >78
Color Temperature: 2700-7000k
Working temperature:-40~50
Lifespan: >50,000hrs
Material: Die-casting Aluminum and Tempered glass
Warranty: 3 years
Certificates: CE & RoHS & TUV
Features
1.IP65: Exactly IP65 design ,for both indoor and outdoor use.
-
Lens: We use high light transmission lens with special surface treatment,which is strong and good for lighting distribution .
-
Utilizes the special design of multichip single module, imported high brightness Semiconductor chips.
-
High heat conductivity, low luminous decay, pure light color, and no ghosting
. -
The LED is closely connected to the surface. The heat from LED is removed through the heat dissipation wing and also by the air ventilation. The design ensures a 50,000 hours life-span for the LED.
-
With the excellent integration between the 5mm high intensity tempered glass and the light housing, it can be used under the high humidity environment.
Application
Apply to the main road, slip road, fast lane, residential road, Park Road, Industrial Park Road, highways, local roads, municipal roads, gas stations and car parks lighting places.
QC of our led light
-
Material: aluminum alloy quality,Anti-UV,Anti-corrosion dealing etc.;Driver detailed & long time test;LED chip color temperautre,CRI,lumen efficiency test;
-
Assembling: following schedule for quality and lead time.Every order's progress is shown to all relative perons in software and board Every Day.
- Aging test:48h aging test to confirm all quality is OK.
-
Warehouse and Shipping:files for item No.,quantity,color temperature,voltage,label,packing etc.All with signature of responsible persons.
