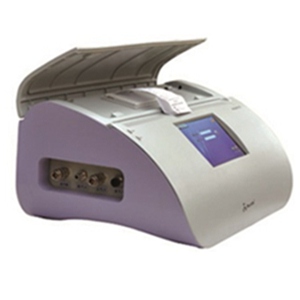

Integtest ® Serials Integrity Tester are designed for testing integrity of filters and filter systems . The test meet to verify the sterilizing filter in the FDA, the State Pharmacopoeia and GMP specification requirements. The V6.0 Integrity Tester is an easy-to-use, portable, fully automated integrity test system, which performs bubble point, diffusion, enhanced bubble point, and water-based test for hydrophobic filters（water immersion test） on a wide range of filters. The first domestic launch of integrity test for ultrafiltration membrane, to meet different customer needs.
Utility Range:
Disc Membrane:Φ25mm-Φ300mm;
Standard Cartridge:2.5″- 40″
Capsule & Mini Cartridge
Air filter test :2.5″- 40″
Ultrafiltration membrane
power 170-240VAC,50/60Hz, 120W
Maximum working pressure 8000mbar(150psi)
Minimum working pressure 1000mbar(150psi)
Dimensions 450mm(length)X280mm(Depth1)X220mm(Height)
Test pressure 100-8000 mbar
Test accuracy D:±4% ; BP: ±50mbar V of WH: ±4% Upstream volume: ±4%
Test time（10″ cartridge filter） Upstream volume test : 5min±2min
Diffusion flow test: 12min±2min
Pressure holding test:3min±customer setting min
Base BP test: 12min±2min
Enhanced test: 16min±2min
WI: 25min±5min
Checklist print Input parameters & output data and result in Chinese or English
History record No number limit record store, and support for SD card and USB disk to export data
LCD 7″ high definition color touch screen
Series I/O type RS232, USB drive
Language of menu Chinese or English
Weight 8KG
Packing size 515480360(mm)
Packing weight 10KG
Parameters:
Brief Description:
- Automatic filter infiltration procedures to ensure filter fully infiltration, and it will launch the flow test, will not affect the downstream aseptic, to meet the requirements of on-site testing.
- Advanced data processing technology: the instrument acquisition of the changing apparent diffusion flow and data flow in real-time for analysis diffusion, viscous flow model, which can accurately identify the filter bubble point value so that the membrane filter bubble point test results have a good relevance with real bacterial interception test.
- The instrument get the actual diffusion flow value by measuring the filter upstream volume, and can test water-based test for hydrophobic filters on-site so that solving the problem of residual organic solution invasion.
- With large capacity data storage, the instrument can plug an external SD card storage test results and curve, and can be connected to the PC to achieve unlimited storage.
- Instrument uses advanced algorithms make the instrument more stable and more accurate which is one percent.
- The gas inlet unit of the instrument adopts full automatic digital control, and the whole test process does not need adjust the gas inlet valve manually.
- we designed specially for the large capacity filter, which ensures that the accuracy will not change when the large capacity filter t
