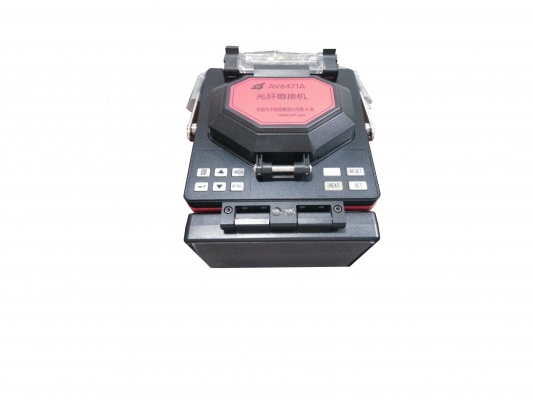

AV6471A is an optical fiber splicing device with a brand new design for FTTH .lightweight and compact makes it easy use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embedded operating system provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-ion battery can support long-time field work. The real=time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environment.
Main features
Not only use for FTTH,but also use for general project of optical fiber splicing;
Precise optical fiber core alignment, guarantee low loss splicing ;
Small in size ,lightweight:only 2.8kg with battery;
Takes only 8seconds for splicing,25 seconds for pyrocondensation
Simultaneous display of X/Y axis; zoom in up to 304 times original size;
Can set automatic start of splicing or of pyrocondensation upon close of the cover;
Real time discharging for adjustment ;no need for further adjustment;
Electrode has a long life, discharging times up to 4000;
With USB and VGA ports;
5.7 inch digital high resolution LCE;
Built-in high capacity battery, which enables up to 220 times of splicing and heating;
Precise real-time display of remaining battery capacity;
